拉西環002

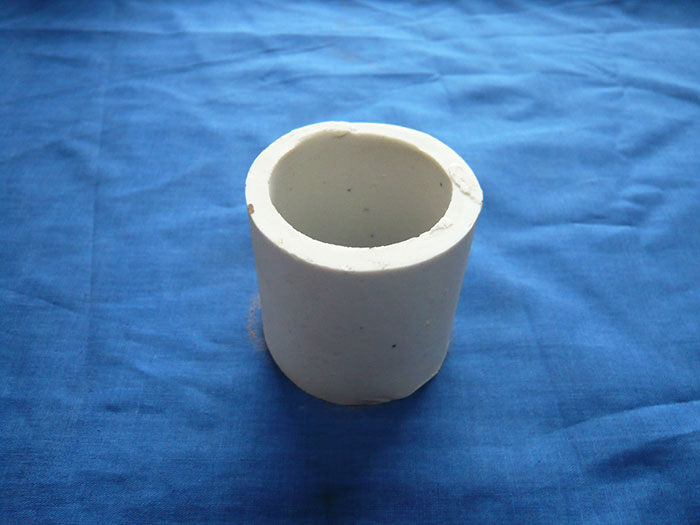

陶瓷拉西環是早開發的一種散堆填料。形狀簡單，它是高與直徑相等的圓環。大尺寸的拉西環（100mm以上）一般采用整砌方式規則填充，100mm以下的拉西環多采用亂堆方式裝填。 陶瓷拉西環具有優異的耐酸耐熱性能，能耐除氫氟酸以外的各種無機酸、有機酸及有機溶劑腐蝕，可在各種高溫場合使用，應用范圍十分廣泛，可用于化工、冶金、煤氣、環保等行業的干燥塔、吸收塔、冷卻塔、洗滌塔、再生塔等
該產品用作填料時，可以增大液體、氣體的接觸面積，提高物質的遷移效率，同時增加氣體處理量，提高效益。當其用在水產養殖業時，其吸附的殺菌液可緩慢在水中釋放；微孔可同時對水起過濾作用，有利于保持水質。
ceramic rasching ring is the earliest developed random packing, named after the German chemist Friedrich Raschig. It's small tube cutting, which outside diameter is equal to its height, providing a surface for (re)evaporation of the most volatile part in the refluxing distillate, typically 10 mm in diameter and 12 mm long.
It's used in commercial fractional distillation towers to reduce pressure loss (versus using trays), while maintaining good efficiency and economy. Typically the change in pressure (also called "delta p") is lower than in the case of trays but slightly higher than for structured packing.
With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Ceramic Raschig Ring can resist high temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.
For raschig ring with big size over 100mm, it's usually filled in the column orderly. If its size is less than 100mm, raschig ring is stacked in the column randomly.
Ceramic Random Packings
Ceramic random packings include Rasching ring, Cross partition ring, Pall ring , Intalox saddles, Super Intalox, Cascade ring and Conjugate ring.
Main specification：
| Name | Type | Diameter×Height×Thickness | Surface Area | Void Fraction | Bulk Density | No.,bulk | Dry Packing Factor |
| mm | m2/m3 | % | Kg/m3 | n/m3 | m-1 | ||
| Rasching ring | Φ25 | 25×25×2.5 | 190 | 78 | 510 | 49100 | 400 |
| Φ38 | 38×38×4 | 126 | 75 | 580 | 12700 | 305 | |
| Φ50 | 50×50×5 | 93 | 81 | 465 | 6400 | 177 | |
| Φ80 | 80×80×8 | 90 | 68 | 640 | 1910 | 234 | |
| Φ100 | 100×100×10 | 70 | 70 | 655 | 1000 | 172 | |
| Φ150 | 150×150×15 | 50 | 68 | 655 | 292 | 142 |
| Name | Type | Diameter×Height×Thickness | Surface Area | Void Space | Bulk Density | No.elements | Packing Factor |
| mm | m2/m3 | % | Kg/m3 | n/m3 | m-1 | ||
| Cross-partition ring | Φ50 | 50×50×5 | 135 | 50 | 520 | 5600 | 1080 |
| Φ80 | 80×80×8 | 120 | 53 | 780 | 2100-2500 | 806 | |
| Φ100 | 100×100×10 | 110 | 56 | 750 | 900-1000 | 626 | |
| Φ150 | 150×150×15 | 60 | 58 | 680 | 270-300 | 308 |
| Name | Type | Diameter×Height×Thickness | Surface Area | Void Space | Bulk Density | No.elements | Packing Factor |
| mm | m2/m3 | % | Kg/m3 | n/m3 | m-1 | ||
| Pall ring | Φ25 | 25×25×3 | 210 | 73 | 630 | 36000 | 540 |
| Φ38 | 38×38×4 | 140 | 75 | 590 | 12000 | 332 | |
| Φ50 | 50×50×5 | 100 | 78 | 520 | 4900 | 210 | |
| Φ80 | 80×80×8 | 90 | 72 | 640 | 1910 | 131 |
| Name | Type | Diameter×Height×Thickness | Surface Area | Void Space | Bulk Density | No.elements | Packing Factor |
| mm | m2/m3 | % | Kg/m3 | n/m3 | m-1 | ||
| Intalox saddles | Φ16 | 16×2×2 | 450 | 70 | 710 | 382000 | 1311 |
| Φ25 | 25×19×3 | 250 | 74 | 610 | 84000 | 617 | |
| Φ38 | 38×30×4 | 164 | 75 | 590 | 19680 | 389 | |
| Φ50 | 50×40×5 | 142 | 76 | 560 | 8100 | 323 | |
| Φ76 | 76×57×9 | 92 | 78 | 520 | 1800 | 194 | |
| Name | Type | Diameter×Height×Thickness | Surface Area | Void Space | Bulk Density | No.elements | Packing Factor |
| mm | m2/m3 | % | Kg/m3 | n/m3 | m-1 | ||
| Supper Intalox | Φ25 | 25×19×3 | 160 | 78 | 530 | 52000 | 337 |
| Φ38 | 38×30×4 | 102 | 80 | 480 | 16000 | 199 | |
| Φ50 | 50×40×5 | 88 | 81 | 450 | 7300 | 166 | |
| Φ76 | 76×57×9 | 58 | 82 | 430 | 1600 | 105 | |
| Name | Type | Diameter×Height×Thickness | Surface Area | Void Space | Bulk Density | No.elements | Packing Factor |
| mm | m2/m3 | % | Kg/m3 | n/m3 | m-1 | ||
| Cascade ring | Φ25 | 25×15×3 | 210 | 73 | 650 | 72000 | 540 |
| Φ38 | 38×23×4 | 153 | 74 | 630 | 21600 | 378 | |
| Φ50 | 50×30×5 | 102 | 76 | 580 | 9100 | 232 | |
| Φ76 | 76×46×9 | 75 | 78 | 530 | 2500 | 158 | |
| Name | Type | Diameter×Height×Thickness | Surface Area | Void Space | Bulk Density | No.elements | Packing Factor |
| mm | m2/m3 | % | Kg/m3 | n/m3 | m-1 | ||
| Conjugate ring | Φ25 | 25×25×3 | 175 | 78 | 520 | 64000 | 369 |
| Φ38 | 38×38×4 | 118 | 80 | 470 | 14000 | 230 | |
| Φ50 | 50×50×5 | 72 | 81 | 450 | 6300 | 135 |
Detailed Product Description
Ceramic saddles, ceramic saddle ring, ceramic saddle tower packing, ceramic tower packing, ceramic random packing
Size & Specification:
| Product Name | Size | Diameter*Height*Thickness | Surface Area | Void | Bulk | Number/ m3 | Packing factor |
| mm | mm | m2/m3 | Space | Density | m-1 | ||
| % | kg/m3 | ||||||
| Intalox saddle | Φ16 | 16×12×2 | 450 | 70 | 710 | 382000 | 1311 |
| ring | Φ25 | 25×19×3 | 250 | 74 | 610 | 84000 | 617 |
| Φ38 | 38×30×4 | 164 | 75 | 590 | 25000 | 389 | |
| Φ50 | 50×40×5 | 142 | 76 | 560 | 9300 | 323 | |
| Φ76 | 76×57×9 | 92 | 78 | 520 | 1800 | 194 |
Ceramic Saddles are divided into two different types of products according to their properties, KPK-CIS-A is often used in the field of Chemical and Petrochemical industries, and KPK-CIS-B is mainly used in environmental areas such as RTO(Regenerative Thermal Oxidizers) equipment. But both of them are the most frequently used high-performance packing and exhibit advantages for most applications in comparison with other shapes. Their smooth surface imparts a high chemical resistance and provides Ceramic Intalox saddle rings (Ceramic Saddles) with a high level of stability. Due to their simple form, ceramic saddles can be produced at a relatively low cost.
Chemical composition:
| SiO2 | Al2O3 | Fe2O3 | CaO | MgO | K2O+Na2O | Other |
| >73% | 17-23% | <1.0% | <0.5% | <0.5% | 2-4% | <0.1% |
Physical properties:
| Index | Value |
| Specific gravity(g/cm3) | 2.3 |
| Water absorption (%) | <0.3 |
| Acid resistance (%) | >99.6 |
| Max operating temp.() | 1100 |
| Porosity (%) | <1 |
| Mohs hardness(scale) | >6.5 |
| Thermal conductivity(w/m.k) | 0.9-1.0 |
| Specific heat(j/kg) | 850-900 |
Pall Ringdetail
Ceramic pall ring is a kind of random packing further developed based on Rischig Ring, with two layers of windows opened along its tube wall. The outside diameter is equal to its height. For each layer, there are 3 ligules bending inward the axes of the ring. The open position for windows between the two layers is staggered oppositely.
Generally, the area for open windows occupies 30% of the total area of the tube wall. It helps vapor and liquid flow freely through these windows, making full use of the rings inner surface to improve distribution of vapor-liquid.
With the characters of high mechanical strength, high chemical stability, and excellent heat endurance.
Ceramic Pall Ring can resist high temperature, acid ( except HF ), alkali, salt and various organic solvents. It is widely applied in various packing towers of desiccation, absorption, cooling, washing and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.
If ring's size is over 100mm, it is usually filled in column orderly. If its size is less than 90mm, pall ring is stacked in the column randomly.
Technical Date:
